姿勢異常の診断アルゴリズム

出典
1: 稲見聡先生ご提供

腰椎変性後側弯症の立位全脊柱X線像

63歳女性。第7頸椎から下ろした垂線は、冠状面(a)では左に、矢状面(b)では前方に移動し、立位のバランスが不良である。
出典
1: 稲見聡先生ご提供

腰椎変性後弯症

a:術前
b:術後
出典
1: 稲見聡先生ご提供

骨粗鬆性椎体骨折後の後弯変形

a:術前
b:術後
出典
1: 稲見聡先生ご提供

姿勢の制御における脊柱と骨盤、下肢の関係

a:正常例
b:腰椎の前弯が減少した場合
c:さらに腰椎の前弯が減少した場合
Pelvic femoral angle(PFA):大腿骨頭の中心からS1上縁中央への線と、大腿骨骨軸の線との間の角度
出典
1: Roussouly P, Pinheiro-Franco JL. Biomechanical analysis of the spino-pelvic organization and adaptation in pathology. Eur Spine J. 2011 Sep;20 Suppl 5(Suppl 5):609-18. Fig.3 を一部改変

姿勢の肉眼的分類

a:正常
b:Round back
c:Flat back
d:Lordotic back
e:Kypholordotic back
出典
1: Toward standards for posture. Postural characteristics of the lower back system in normal and pathologic conditions.
著者: During J, Goudfrooij H, Keessen W, Beeker TW, Crowe A.
雑誌名: Spine (Phila Pa 1976). 1985 Jan-Feb;10(1):83-7.
Abstract/Text: On theoretic grounds it can be assumed that aberrations of posture may play a role in the generation of low-back pain by creating concentrations of stress. However, this assumption remains speculative because of the absence of criteria for normal posture. This study considers some of these criteria, especially as they are related to the lumbar spine and pelvis. The relations between the angle of declivity of the sacrum and radius and inclination of the lordotic curvature of the lumbar spine show good correlation. Mean values of postural parameters in the group of spondylolysis patients differ significantly from those in the group of healthy volunteers.
Spine (Phila Pa 1976). 1985 Jan-Feb;10(1):83-7.
2: Staffel F: Die menschlichen Haltungstypen und ihre Beziehungen zu den Riickgratsverkriimmungen. Wiesbaden, 1889: 20, 42, 51, 60, 74.

冠状面と矢状面のバランスの評価

a:冠状面
第7頸椎から下ろした垂線と仙骨中央を通る垂線の距離(Central sacral vertical line、CSVL)
b:矢状面
第7頸椎から下ろした垂線と第1仙椎後上縁の距離で表す(Sacral vertical axis、SVA)
出典
1: 稲見聡先生ご提供

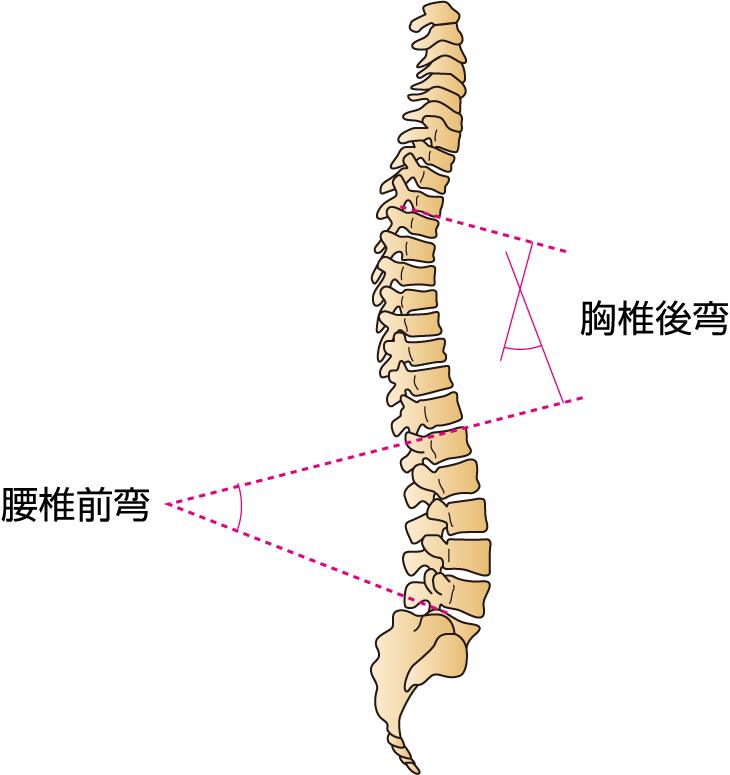

脊柱矢状面アライメントの見方

胸椎後弯はT5−T12、腰椎前弯はL1からS1の矢状面のCobb角で表す。
出典
1: 編集部作成

姿勢に関与する脊柱と骨盤のパラメータ

健常者におけるデータ
骨盤パラメータの計測方法:[ID0668][ID0669]
出典
1: Adult spinal deformity-postoperative standing imbalance: how much can you tolerate? An overview of key parameters in assessing alignment and planning corrective surgery.
著者: Schwab F, Patel A, Ungar B, Farcy JP, Lafage V.
雑誌名: Spine (Phila Pa 1976). 2010 Dec 1;35(25):2224-31. doi: 10.1097/BRS.0b013e3181ee6bd4.
Abstract/Text: STUDY DESIGN: Current concepts review.
OBJECTIVE: Outline the basic principles in the evaluation and treatment of adult spinal deformity patients with a focus on goals to achieve during surgical realignment surgery.
SUMMARY OF BACKGROUND DATA: Proper global alignment of the spine is critical in maintaining standing posture and balance in an efficient and pain-free manner. Outcomes data demonstrate the clinical effect of spinopelvic malalignment and form a basis for realignment strategies.
METHODS: Correlation between certain radiographic parameters and patient self-reported pain and disability has been established. Using normative values for several important spinopelvic parameters (including sagittal vertical axis, pelvic tilt, and lumbar lordosis), spinopelvic radiographic realignment objectives were identified as a tool for clinical application. Because of the complex relationship between the spine and the pelvis in maintaining posture and the wide range of "normal" values for the associated parameters, a focus on global alignment, with proportionality of individual parameters to each other, was pursued to provide clinical relevance to planning realignment for deformity across a range of clinical cases.
CONCLUSION: Good clinical outcome requires achieving proper spinopelvic alignment in the treatment of adult spinal deformity. Although variations in pelvic morphology exist, a framework has been established to determine ideal values for regional and global parameter in an individualized patient approach. When planning realignment surgery for adult spinal deformity, restoring low sagittal vertical axis and pelvic tilt values are critical goals, and should be combined with proportional lumbar lordosis to pelvic incidence.
Spine (Phila Pa 1976). 2010 Dec 1;35(25):2224-31. doi: 10.1097/BRS.0b0...

骨盤パラメータの計測方法

SS (sacral slope):第1仙椎終板と水平線のなす角度
PT (pelvic tilt):第1仙椎終板の中点と大腿骨頭中心を結ぶ線と、垂線のなす角度
PI (pelvic incidence):第1仙椎終板の中点と大腿骨頭中心を結ぶ線と第1仙椎終板の垂直2等分線のなす角度
出典
1: 稲見聡先生ご提供

SVAとT1-SPIの計測方法

T1 spinopelvic inclination(T1SPi):上部脊柱と骨盤のアライメントを評価する指標で、垂線と、T1椎体の中心から両側股関節中心(大腿骨頭)への線との間の角度
出典
1: Ferrero E, Liabaud B, Challier V, et al. Role of pelvic translation and lower-extremity compensation to maintain gravity line position in spinal deformity. J Neurosurg Spine. 2016; 24(3): 436-46. FIG.1 を一部改変

矢状面のバランスの評価

第7頸椎から下ろした垂線と第1仙椎後上縁の距離で表す(Sacral vertical axis、SVA)
出典
1: 稲見聡先生ご提供(一部改変)

姿勢異常の診断アルゴリズム

出典
1: 稲見聡先生ご提供

腰椎変性後側弯症の立位全脊柱X線像

63歳女性。第7頸椎から下ろした垂線は、冠状面(a)では左に、矢状面(b)では前方に移動し、立位のバランスが不良である。
出典
1: 稲見聡先生ご提供
