腰部脊柱管狭窄症の診断・治療アルゴリズム

腰部、下肢の疼痛しびれを訴える患者に対する診断・治療の進め方を示す。
出典
1: 著者提供

脊椎内視鏡下部分椎弓切除術(microendoscopic laminotomy: MEL)

L4/5椎間左側より進入し、両側除圧を行っているところ、写真中の丸(○)は円筒形レトラクターの挿入位置を示す。

腰椎部の解剖

a:脊椎と脊髄・脊髄神経の位置関係
b:L4/5椎間板が脊柱管内で突出した場合、L4神経ではなくL5神経が障害される
c:腰椎横断面とMR像(L1椎体高位)
出典
1: Jon C. Thompson MD. Netter's Concise Orthopaedic Anatomy, 2nd ed, Elsevier, 2010; 29-74, CHAPTER 2.

腰部脊柱管狭窄の模式図

a:正常な腰部脊柱管
b:腰部脊柱管狭窄
出典
1: 著者提供

腰部脊柱管狭窄症の性別・年代別分布

和歌山県の住民コホート1009名を対象に行われた横断研究結果である。横軸は年代、縦軸は検診参加者における有病者の割合を示す。(下記文献を改変)
出典
1: Prevalence of symptomatic lumbar spinal stenosis and its association with physical performance in a population-based cohort in Japan: the Wakayama Spine Study.
著者: Ishimoto Y, Yoshimura N, Muraki S, Yamada H, Nagata K, Hashizume H, Takiguchi N, Minamide A, Oka H, Kawaguchi H, Nakamura K, Akune T, Yoshida M.
雑誌名: Osteoarthritis Cartilage. 2012 Oct;20(10):1103-8. doi: 10.1016/j.joca.2012.06.018. Epub 2012 Jul 10.
Abstract/Text: OBJECTIVE: The purpose of this study was to investigate the prevalence of symptomatic lumbar spinal stenosis (LSS) and to clarify the association between symptomatic LSS and physical performance using magnetic resonance imaging (MRI) in a population-based cohort.
DESIGN: This cross-sectional study was performed as a part of the research on osteoarthritis/osteoporosis against disability (ROAD) in Japan and 1,009 subjects (335 men, 674 women, mean age 66.3 years, age range 21-97 years) were analyzed. An experienced orthopedic surgeon obtained the medical history and performed the physical testing for all participants. Symptomatic LSS diagnostic criteria required the presence of both symptoms and radiographic LSS findings. A 6-m walking time, chair standing time, and one-leg standing time were obtained from all participants.
RESULTS: The prevalence of symptomatic LSS was 9.3% (95% confidence interval [CI]: 7.7-11.3) overall, 10.1% (CI: 7.4-13.8) in men and 8.9% (CI: 7.0-11.3) in women. There was a difference in the prevalence with increasing age by gender. The LSS prevalence showed little difference with age greater than 70 years for men, but the LSS prevalence for women was higher with increasing age. Among physical performance measures, 6-m walking time at a maximal pace was significantly associated with symptomatic LSS (P = 0.03).
CONCLUSION: The prevalence of symptomatic LSS was approximately 10% in a cohort resembling the general Japanese population. A 6-m walking time at a maximal pace was a more sensitive index than walking at a usual pace in assessing decreased physical performance associated with symptomatic LSS.

Copyright © 2012 Osteoarthritis Research Society International. Published by Elsevier Ltd. All rights reserved.
Osteoarthritis Cartilage. 2012 Oct;20(10):1103-8. doi: 10.1016/j.joca....

開窓術(部分椎弓切除術、椎弓切除術)

直視下に罹患椎間の黄色靱帯付着範囲を椎弓切除により卵円形になるように開窓し、馬尾と神経根の除圧を行う。脊柱管外側陥凹部に狭窄がある場合は、尾側の上関節突起の一部も切除する。図の上位椎間は部分椎弓切除術(a)、下位椎間は椎弓切除術(b)を示している。
出典
1: Spine Shen, Francis H., Orthopaedic Surgical Approaches, 2nd ed, Elsevier, 2015; 161-266, CHAPTER 5, FIGUER 5-106. (改変あり)

後方経路腰椎椎体間固定術(posterior lumbar interbody fusion: PLIF)の例

椎間関節を切除または部分切除して神経根・硬膜管を排し、椎間板摘出後、軟骨終板を削除して椎間腔に移植骨あるいは移植骨を充填したケージを挿入し固定する。この症例ではX線透過性のカーボンケージ(黒い点はマーカー)が挿入されており、後方は椎弓根スクリューとロッドによるインスツルメンテーションが成されている。
a:前後像
b:側面像
出典
1: Posterior, Transforaminal, and Anterior Lumbar Interbody Fusion : Techniques and Instrumentation Kanter, Adam S., Youmans Neurological Surgery, Chapter 304, 3083-3087 Copyright © 2011 Copyright © 2011, 2004, 1996, 1990, 1982, 1973 by Saunders, an imprint of Elsevier Inc.

Straight-leg raising (SLR)テスト

a:患者を背臥位とし、下肢の力を抜かせ、足関節をやや底屈位とする。
b:この状態で下肢を伸ばしたまま、股関節を屈曲して行く。健常であれば80〜90°まで挙上できる。坐骨神経痛が誘発されて挙上制限される角度を記入する。
出典
1: 著者提供

腰部脊柱管狭窄症

単純MRI T2強調矢状断像
出典
1: 著者提供

腰部脊柱管狭窄症(L4/5中心性狭窄)の典型例

73歳男性。
a:単純X線側面像
b:単純MRI T2強調矢状断像
c:単純MRI T2強調横断像(L3/4高位)
d:単純MRI T2強調横断像(L4/5高位)
出典
1: 著者提供

脊椎内視鏡下部分椎弓切除術(microendoscopic laminotomy: MEL)

L4/5 椎間左側より進入し、両側除圧を行っているところ、写真中の丸(○)は円筒形レトラクターの挿入位置を示す。[ID2001]
出典
1: 中川幸洋先生ご提供

腰部脊柱管狭窄症(椎間孔部狭窄)の典型例

53歳男性、左L5神経支配領域の痛みを主訴とする。3次元MRI(a)では左L5神経は椎間孔部で横走し、左後根神経節の形態異常も認める(黄色矢印)。左L5神経根造影(b)では造影剤が椎間孔出口部で途絶しており、同部での神経圧迫を示唆する。
出典
1: 著者提供

椎間孔部狭窄に対する内視鏡によるアプローチ

a:脊椎内視鏡システムの円筒形レトラクターを挿入した断面図
b:L5横突起、L5/S1椎間関節、仙骨翼で形成される三角(TLS三角)に向かって円筒形レトラクターを挿入する。
出典
1: 山田宏先生ご提供

脊椎内視鏡による椎間孔部狭窄の除圧

a:3次元CT像で除圧した部位(○)を示す。
b:脊椎内視鏡モニター画面でL5神経除圧後の状態を示す(TP=L5横突起、SF=S1上関節突起、SA=仙骨翼、IVD=L5/S椎間板、DRG=L5神経後根神経節)。
出典
1: 山田宏先生ご提供

Kemp徴候

  1. 腰椎伸展で下肢症状が誘発
  1. 知覚・運動麻痺はない場合が多い(重症例で出現)
出典
1: 著者提供

腰部脊柱管狭窄症における神経性間欠跛行の機能的分類(菊地ら、1996)

腰部脊柱管狭窄症において認められる神経性間欠跛行は、機能的に馬尾型、神経根型、両者の合併である混合型の3型に分類される。
出典
1: 著者提供

腰部脊柱管狭窄症診断サポートツール

腰部脊柱管狭窄症は一般医にとって初期から適確に診断することは必ずしも容易ではないため、診断サポートツールを用いてスクリーニングすることが推奨される。確定診断には専門医による画像検査も含めた精査が必要である。
出典
1: Development of a clinical diagnosis support tool to identify patients with lumbar spinal stenosis.
著者: Konno S, Hayashino Y, Fukuhara S, Kikuchi S, Kaneda K, Seichi A, Chiba K, Satomi K, Nagata K, Kawai S.
雑誌名: Eur Spine J. 2007 Nov;16(11):1951-7. doi: 10.1007/s00586-007-0402-2. Epub 2007 Jun 5.
Abstract/Text: No clinical diagnostic support tool can help identify patients with LSS. Simple diagnostic tool may improve the accuracy of the diagnosis of LSS. The aim of this study was to develop a simple clinical diagnostic tool that may help physicians to diagnose LSS in patients with lower leg symptoms. Patients with pain or numbness of the lower legs were prospectively enrolled. The diagnosis of LSS by experienced orthopedic specialists was the outcome measure. Multivariable logistic regression analysis identified factors that predicted LSS; a simple clinical prediction rule was developed by assigning a risk score to each item based on the estimated beta-coefficients. From December 2002 to December 2004, 104 orthopedic physicians from 22 clinics and 50 hospitals evaluated 468 patients. Two items of physical examination, three items of patients' symptom, and five items of physical examination were included in the final scoring system as a result of multiple logistic regression analysis. The sum of the risk scores for each patient ranged from -2 to 16. The Hosmer-Lemeshow statistic was 11.30 (P = 0.1851); the area under the ROC curve was 0.918. The clinical diagnostic support tool had a sensitivity of 92.8% and a specificity of 72.0%. The prevalence of LSS was 6.3% in the bottom quartile of the risk score (-2 to 5) and 99.0% in the top quartile (12 to 16). We developed a simple clinical diagnostic support tool to identify patients with LSS. Further studies are needed to validate this tool in primary care settings.
Eur Spine J. 2007 Nov;16(11):1951-7. doi: 10.1007/s00586-007-0402-2. E...

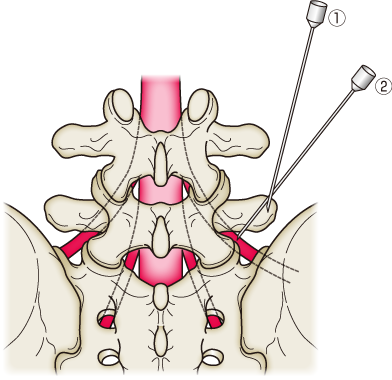

右L5神経根ブロック(造影)の刺入方法

①一度横突起に針先を当てて、②その後末梢内側部に向けて刺入する
出典
1: 著者提供

3次元(3-D)MRI

椎間孔部狭窄が疑われる場合、診断には3次元MRIが有用である。この図では右L5神経の横走化および椎間孔部での絞扼像を認める。
出典
1: 著者提供

浅腓骨神経感覚神経活動電位(SPN-SNAP)

a:検査施行時の外観
b:健側から得られた神経活動電位
c:患側から得られた神経活動電位
出典
1: 岩﨑博先生ご提供

椎間孔部狭窄の定義

Kunogiら[1]は椎弓根外縁を指標とし、椎間孔部狭窄をintraforaminal stenosis (椎間孔内狭窄)とextraforaminal(椎間孔外狭窄)に分類した。

参考文献:
  1. Konno S, Kikuchi S, Tanaka Y, et al. A diagnositic support tool for lumbar spinal stenosis : a self administered, self reported history questionnaire. BMC Musculoskelet Disord 8:102, 2007. PMID: 17967201.
出典
1: 山田宏先生ご提供

腰部脊柱管狭窄症の診断・治療アルゴリズム

腰部、下肢の疼痛しびれを訴える患者に対する診断・治療の進め方を示す。
出典
1: 著者提供

脊椎内視鏡下部分椎弓切除術(microendoscopic laminotomy: MEL)

L4/5椎間左側より進入し、両側除圧を行っているところ、写真中の丸(○)は円筒形レトラクターの挿入位置を示す。
